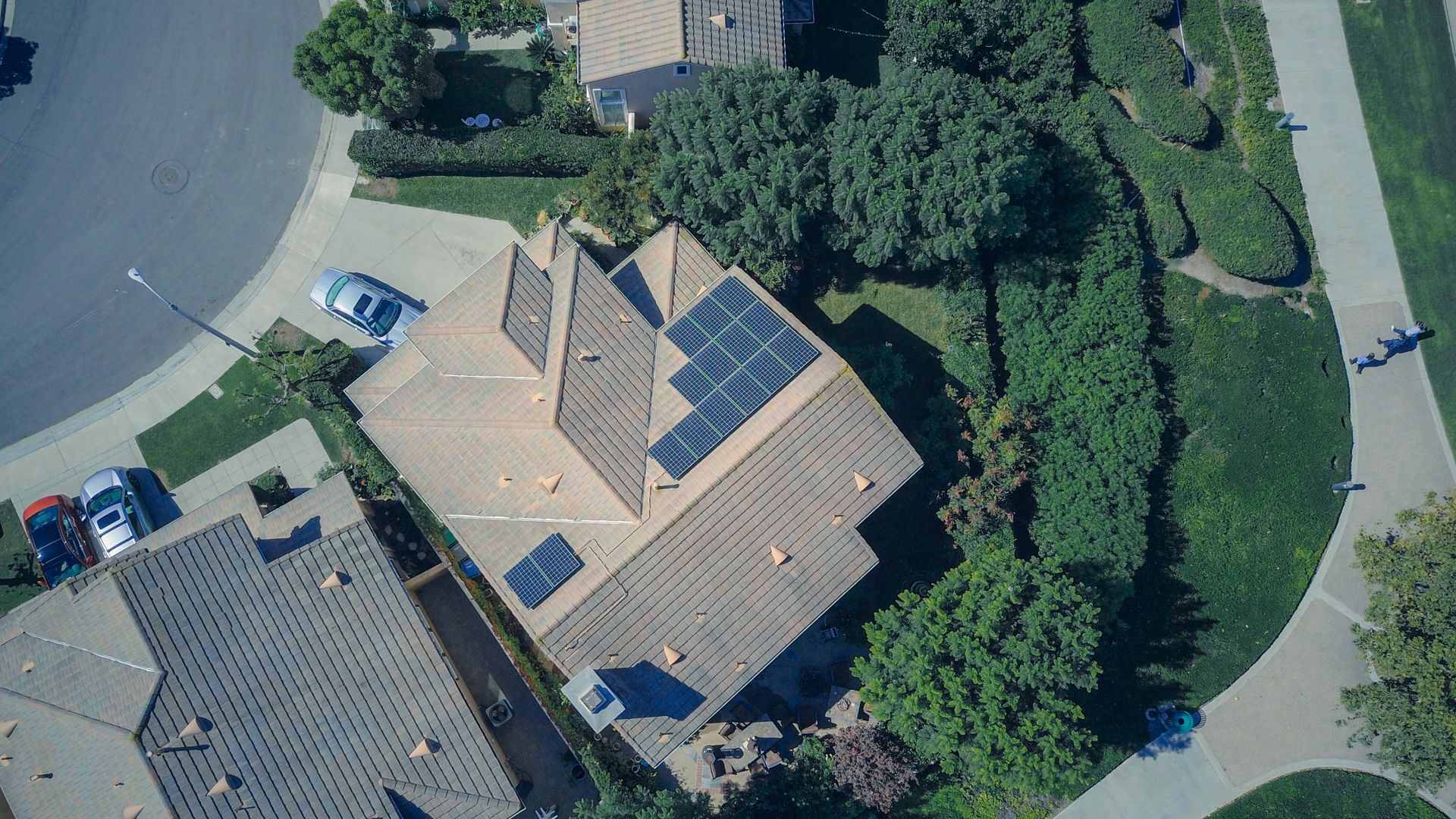

Photo: Kindel Media on Pexels
Maria runs the data collection behind our solar pages. She checks installer registrations against the electrical contractor register, records quoted system prices, and tracks changes to the grant schemes as they are published.
Published
A mounting system is specified on three inputs, and none of them is the module. It is specified on the wind load the array will see at that height and that position on the roof, the corrosion environment the metalwork has to survive, and what the existing roof build-up can actually carry and be fixed into. Everything else — rail profile, clamp type, ballast mass, anchor spacing — falls out of those three. A quote that names a brand of rail but cannot state the wind zone, the terrain category and the building height it was calculated for has not specified anything.
The specification in plain terms
The mounting system is the set of parts between the roof and the module frame. In practice that is four groups.
Rails. Extruded aluminium sections that carry the modules and spread load across several fixing points. Profile depth determines the maximum span between supports, which is why a deeper rail with fewer roof penetrations is often the cheaper answer on a roof where every penetration has to be flashed.
Clamps. Mid-clamps between adjacent modules and end-clamps at the row ends, or an insertion system that grips the frame from the side. Every module datasheet defines a permitted clamping zone along the long or short frame edge. Clamping outside that zone is the most common way a module warranty is voided on site without anyone noticing.
The roof interface. This is where Cypriot practice diverges from northern European practice. Most residential and small commercial stock on the island is a flat reinforced-concrete slab with a waterproofing layer, often with a screed or tile finish over it, and very often with a solar thermal cylinder and its frame already occupying the best part of the roof. That gives three realistic options: mechanically anchored feet through the membrane with a re-flashed detail, a ballasted tray system that penetrates nothing, or purpose-cast concrete plinths with anchors set into fresh concrete. Pitched tile roofs, where hook-type interfaces are used, are the minority case here rather than the default.
Fasteners. Bolts, nuts, washers and anchors, in a material chosen for the corrosion category of the site rather than for the price list.
Standards that apply in Cyprus
Wind is the governing action on almost every Cypriot array. Snow is irrelevant below the Troodos villages, and the dead load of a modern module and rail is modest. Uplift is what tears arrays off roofs.
Wind actions are calculated under EN 1991-1-4 as applied through the Cyprus National Annex, combined with the other actions under EN 1990. The calculation is not a single number for the island. It takes the basic wind velocity for the location, a terrain category that reflects how built-up and how exposed the surroundings are, the height of the building, and then a pressure coefficient that varies by where on the roof the array sits. A coastal high-rise roof in Limassol, where rapid vertical development has changed the exposure of neighbouring buildings, does not share a terrain category with an inland plot behind a windbreak.
Aluminium structural members fall under EN 1999. Atmospheric corrosivity is classified under EN ISO 9223 on a scale from C1 to C5, and the practical consequence is the fastener grade: A4 (316) stainless where salt spray reaches the roof, A2 (304) acceptable further inland. In Kato Paphos, where direct coastal exposure means salt-laden air, galvanised and marine-grade fixings are already standard practice among competent installers; the failures come from imported kit specified for a different climate.
On the electrical side, the frame and rails have to be bonded into the installation's earthing arrangement, and the connection application to the Electricity Authority of Cyprus covers the installation as a whole rather than the mounting in isolation. Structural design work of any consequence should be signed by an engineer registered with ETEK. On a single-storey villa with a generously specified slab that check is quick. On an older block it is the whole question.
Common specification errors
Uniform ballast across the whole array. As above. The correct output is a ballast layout drawing, with different masses in the corner, edge and field zones, not a single kilogram figure.
Mixed metals in a salt environment. Galvanised steel components bolted directly to aluminium rail with no isolating washer will corrode galvanically, and the process runs faster the closer the roof is to breaking surf. It is a directly-exposed-coastline problem before it is anything else, which is why Kato Paphos, where salt-laden air is the norm, is where it surfaces first.
No allowance for thermal movement. Extruded aluminium moves roughly 2.3 mm per 10 m of run per 10 °C of temperature change. Nicosia has the widest temperature range on the island, which is precisely why long continuous rail runs on a Nicosia roof need expansion joints and why rails hard-fixed at both ends either bow or drag their anchors.
Anchoring through an ageing membrane without re-flashing. Strovolos and the surrounding Nicosia suburbs carry a large stock of 1970s to 1990s apartment blocks. A membrane that has had thirty summers of ultraviolet exposure does not reseal itself around a new penetration. If the roof is due for waterproofing within a few years, the sequence matters: waterproof first, mount second.
Access assumed rather than checked. Ballasted systems need concrete blocks or filled trays delivered to roof level. On the hillside plots around Peyia, steep access roads limit crane and delivery vehicle size, which can turn a ballasted design into an anchored one on cost grounds alone. That decision belongs at survey stage, not on the morning of the installation.
The roof treated as empty. Solar thermal cylinders, water tanks, air conditioning condensers, satellite dishes and parapet walls all cast shadows and all occupy load-bearing positions. An array laid out on a satellite image rather than a site survey will meet at least one of them.
Tilt chosen for peak yield alone. Uplift force, and therefore ballast mass, rises sharply with array angle. On a flat roof with a constrained slab, a lower tilt that carries less ballast and allows tighter row spacing often produces more annual generation from the same roof than a steeper, better-angled array with fewer rows.
How to check what was installed
Most of this is documentation rather than climbing on a roof.
The wind load calculation, with its inputs stated
It should name the standard, the location, the terrain category, the building height and the zone factors used. A calculation you cannot audit is a reassurance, not a calculation.
The ballast or anchor layout drawing
Positions and masses by zone. For anchored systems, anchor type, embedment depth and spacing, plus the flashing detail used at each penetration.
Fastener grade markings
A2 and A4 stainless fasteners are marked on the head. On a coastal roof this takes a minute and settles the question permanently.
Photographs of the penetrations before they were covered
Once the tiles, screed or ballast go back, the flashing detail is invisible for the life of the array. Ask for the photographs at handover, not after the first heavy rain.
Clamp positions against the module datasheet
Compare the actual clamp positions with the permitted clamping zone the manufacturer publishes. Mismatches are correctable early and expensive later.
Earthing and bonding continuity
The frame and rails should be bonded, with a continuity measurement recorded in the commissioning pack.
A first inspection after the first winter storm season is worth scheduling. Bolts that were torqued correctly can still relax as the structure beds in, and the cheapest time to find a lifted end-clamp is before it takes a module with it. Our solar maintenance guidance covers the inspection interval question in more detail, and the district pages set out which installers work where.
What it costs
Mounting is rarely a separate line in a Cypriot quote. It sits inside an installed price that runs around EUR 900 to 1,300 per kWp for a grid-tied system, and the range within that figure is driven far more by roof access, penetration count and whether ballast has to be lifted than by the rail brand.
If you are comparing two quotes and one is materially cheaper, the mounting specification is where to look first. Ballast omitted, an anchored design without flashing details, or A2 fasteners on a seafront roof will all show up as a lower number today and a call-out in three years.
Common questions
Does a mounting system need an engineer's sign-off in Cyprus?
Structural design work should be carried out or verified by an engineer registered with ETEK. Whether a specific array needs a fresh structural assessment depends on the roof: a modern villa slab with a light array is a different question from a 1970s block carrying additional dead load and uplift it was never designed for.
Ballast or anchors on a flat concrete roof?
Ballast avoids penetrating the waterproofing, which is the main argument for it, but it adds dead load and has to be physically carried to the roof. Anchors add penetrations that must be flashed properly, but weigh nothing. Roof age, membrane condition, slab capacity and site access decide it — in that order.
Can panels be fixed to the existing solar thermal frame?
No. Those frames are designed for the dead load of a cylinder and collector, not for the uplift a PV array generates, and they are usually anchored for that lighter duty. Treat the existing installation as an obstruction to design around.
Do coastal installations really need different fixings?
Yes. EN ISO 9223 corrosivity categories exist because the same steel behaves differently at different distances from the sea. Where salt spray reaches the roof, A4 (316) stainless and isolation between dissimilar metals are the baseline, not an upgrade.
How much of the total cost is the mounting?
It is not usually itemised. What moves it within the installed price is the number of roof penetrations, whether ballast has to be lifted to the roof, and how difficult the site is to reach with a vehicle.
How often should the mounting be inspected?
At minimum after the first winter storm season, then on the same visit as array cleaning. Clamp torque, ballast displacement, corrosion at fastener heads and the condition of the flashing details are the four things worth looking at.
