Solar panel installation
Solar mounting systems in Cyprus, question by question
Ballasted or penetrating mounts on Cypriot flat concrete roofs: what decides it, what wind uplift and salt air change, and what to check before signing.
7 min read

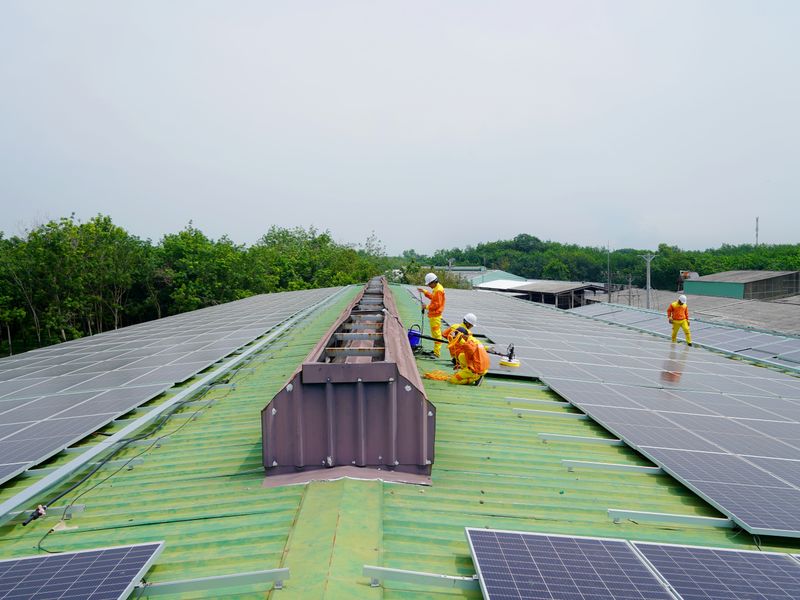

Photo: Kindel Media on Pexels
Maria runs the data collection behind our solar pages. She checks installer registrations against the electrical contractor register, records quoted system prices, and tracks changes to the grant schemes as they are published.
Published
Almost every rooftop array in Cyprus sits on one of two arrangements: ballast blocks resting on a flat concrete deck, or brackets bolted through the waterproofing into that deck. Cyprus reaches that decision differently from most of Europe, because the roof is usually flat reinforced concrete rather than pitched tile, the governing load is wind uplift rather than snow, and the membrane underneath is the single most failure-prone layer in the building. Mounting rarely appears as its own line in a quote — it sits inside the €900 to €1,300 per kWp that a grid-tied residential system costs installed — which is exactly why it needs to be asked about before the quote is signed.
The ten questions that come up most
The wording varies; the list does not.
- Ballasted or penetrating on a flat concrete roof?
- Does a penetration void the roof waterproofing?
- How much dead load does ballast add, and will the slab carry it?
- What actually governs the design — weight or wind uplift?
- What tilt angle should be specified, and how much does it change yield?
- South-facing rows or an east–west layout?
- Which materials survive coastal air?
- What happens to the solar water heater already on the roof?
- Ground mount or roof mount on a farm building?
- Who certifies that the structure is adequate?
Short answers
Ballast or penetration. Ballast resists uplift with mass and leaves the membrane intact. Penetrating brackets transfer uplift into the slab and need far less added weight, but every fixing is a hole through the waterproofing. On a sound, recently waterproofed roof with spare structural capacity, ballast is the lower-risk answer. On an older deck where the membrane is due for replacement anyway, penetration combined with new tanking is often the better sequence: the roof gets rebuilt once rather than twice.
Price context. Neither method shows up separately in a domestic quote. The installed figure absorbs it.
Commercial rooftops in the 50–250 kWp band run €700 to €1,050 per kWp installed, and farm installations including pumping loads €750 to €1,200 per kWp. The lower commercial rate reflects scale, not a cheaper mounting standard.
Warranty. A penetration through a membrane still under a waterproofing warranty transfers responsibility to whoever made the hole. That transfer should be written down before drilling, naming which contractor carries the roof from that day forward. Verbal reassurance is worth nothing when water appears in the flat below two winters later.
Dead load. Ballast is added permanently to a slab designed for a different purpose. The kilograms per square metre come from the mounting manufacturer's wind calculation for that specific site, and whether the slab accepts it is a question for a structural engineer rather than for the PV installer. On a single-storey villa it is rarely an issue. On an apartment block it deserves an answer in writing.
Governing load. Uplift, in nearly every Cypriot case. Panels on a flat roof behave like a wing, and the highest suctions occur at roof corners and edges — which is why a competent layout keeps rows back from the perimeter and increases ballast or fixing density in the corner zones. A design applying one uniform ballast figure across the whole roof has not been calculated.
Tilt. Cypriot latitude favours a shallower tilt than northern Europe, and the yield curve around the optimum is flat enough that a few degrees either way changes little. Row spacing changes a great deal: steeper tilt means longer shadows, wider gaps and fewer kWp on the same roof.
Layout. South-facing rows maximise annual kWh per kWp. East–west layouts fit substantially more capacity onto the same area because rows sit back-to-back with minimal shading gaps, and they spread generation across the morning and afternoon rather than concentrating it at midday. On an area-constrained roof with a daytime load profile, east–west frequently produces more useful energy even though each kWp produces less.
Materials. Aluminium rail with stainless fixings is the baseline. Near the shoreline the fixing grade is the specification that matters, and in directly exposed locations such as Kato Paphos galvanised and marine-grade fixings are already standard practice for every trade, not a solar-specific precaution.
The existing water heater. Most Cypriot roofs already carry a thermosiphon cylinder and its collectors, occupying the best-oriented area and casting a shadow that moves across the deck all year. It has to be surveyed, relocated or designed around before the array layout is drawn.
Ground versus roof on a farm. Ground mount removes the roof risk and allows the tilt to be chosen freely, at the cost of land, fencing, cable runs and a foundation design. Roof mount on an agricultural building avoids that but inherits whatever the roof structure actually is, which on older farm buildings is frequently unknown.
Certification. Structural adequacy is an engineering matter, and the electrical installation is certified by a licensed contractor as part of the connection application to the Electricity Authority of Cyprus. The Cyprus Scientific and Technical Chamber is the professional body behind the engineering side of that.
Where the answer depends
Building stock. Much of Strovolos and the surrounding Nicosia suburbs is 1970s to 1990s apartment blocks. The roof is common property, original structural drawings may not exist, and the decision belongs to the management committee before it belongs to the installer. Ballast on a slab of unknown reinforcement is where a structural opinion stops being optional.
Coastal exposure. Dissimilar metals in contact corrode faster in salt air, so the pairing of rail, bracket, bolt and washer matters as much as the individual grades.
Access. On the hillside plots around Peyia, steep access roads limit crane and delivery vehicle size, and ballast is heavy, bulky and delivered by the pallet. A design that is unremarkable on a flat coastal plot can become the most expensive part of the job when it has to be carried up in stages.
Ground movement. Parts of Pissouri have known ground movement, which makes a structural survey standard before major work. For a ground-mounted array on that terrain, foundation type is a site-investigation question rather than a catalogue selection.
Thermal movement. Inland districts see the widest temperature range on the island. Long aluminium rail runs expand and contract across it, and a design without expansion provision transfers that movement into clamps, brackets and the deck.
What nobody asks but should
Which wind zone and building height were used?
Ask for the inputs, not the conclusion. Two identical roofs at different heights, or one exposed and one sheltered by a taller neighbour, produce different ballast schedules from the same software.
Is the ballast schedule zoned or uniform?
Corner and edge zones carry higher suction than the field of the roof. A schedule that varies across the roof shows the calculation was run. A single number for the whole array usually means it was not.
What sits between the ballast tray and the membrane?
Protection mats are not decoration. Membrane surfaces soften at Cypriot summer roof temperatures, and a hard edge under load will find that out over a decade.
How is the array taken off again?
Waterproofing gets renewed. A system that demounts in sections, with cable slack and labelled strings, turns a future roof job into a manageable one.
Who signs the structural adequacy, and on what basis?
The name, the qualification and the document. If the answer is that the supplier's software produced a report, ask who reviewed the assumptions typed into it.
Common questions
Is a ballasted mount worth it in Cyprus?
On an intact flat roof with structural capacity to spare, yes — it keeps the waterproofing sealed, and waterproofing failure is the most common defect in Cypriot buildings. The trade-off is added dead load and a larger keep-back from roof edges, meaning fewer kWp on a small roof.
Does a penetrating mount always leak eventually?
No. Correctly formed penetrations with proprietary flashings and a reinstated membrane are a routine detail. Leaks come from penetrations formed by whoever happened to be on the roof that day, sealed with mastic and covered over. The difference is method and accountability, not the concept.
Can panels go on an older Cypriot apartment block roof?
Frequently yes, but the sequence differs. The management committee decides, the roof condition is surveyed, and structural capacity is confirmed before layout. Where the membrane is near end of life, waterproofing and mounting are planned as one project.
How much does mounting add to the price?
It is not quoted separately in domestic work; the residential range of €900 to €1,300 per kWp installed already contains it. What moves a quote inside that band is roof condition, access, ballast quantity and whether structural or waterproofing work is bundled in.
Do you publish ratings or scores for installers?
No. The solar installation section and the district coverage pages order companies on what a document can prove: registration, licence category, insurance and time trading. The weighting is set out on our methodology page.
